Macquarie River reregulating storage project

Submission Guide: Inquiry into the rationale for, and impacts of, new dams and other water infrastructure in NSW – focus on Macquarie River reregulating project.

This inquiry is into the following projects: Wyangala dam wall raising, Mole River dam, Dungowan dam, Macquarie River reregulating storage project and the Western Weirs project. This submission guide refers specifically to the Macquarie River reregulating storage project. Please make that clear in your submission.

Submit Online: Upload Submission Document Here (fill out contact details on the first screen. Elect if you want your submission public on the second page. Upload a document on the third page).

Deadline: CoB Tuesday 22^nd September 2020

For more details, see the full terms of reference: ToR

_________________________________________________________________________________________________________________________

 Points to make about the Macquarie River reregulating storage project:

a) Fix the rules instead of building the project:

• Water that isn’t in Burrendong is allocated to customers. Only water that is physically in Burrendong should be allocated. That would decrease the risk of the river and towns in the valley running out of water.
• The NSW Government only look at drought records from before 2004 when working out water allocations.
• WaterNSW only deduct the volume of water a customer pumps, not the volume they order. If they deducted what they ordered, there would be no need to build this structure.
• Some types of environmental water and unregulated flows, including inflows from the Talbragar, Bell and Little Rivers, could be captured by this project. There should be consistent rules across the Murray Darling Basin that protect all types of environmental water from extraction.

b) The economic rationale for the project:

• The public don’t know the estimated cost of the project, we only know it is at least $30 million dollars because it’s classified State Significant Infrastructure.
• The final business case will not be made public, despite a public promise from the Member for Dubbo Dugald Saunders MP.
• The volumes of extra water for general security customers, and the cost of the project will be in the final business case, those critical figures will not be available to the public.
• The Member for Dubbo stated there would be “not one drop of water extra that goes to irrigation”, however increasing the volumes available for general security customers is an objective of the project.
• There will be no high security town water licences held in the storage.
• The extra water for general security will be coming from flows that are currently a type of environmental water. The environment will have much less water, even though there will be small increase in water available to the general security environment account.
• Only general security irrigation customers will benefit from this project.
• WaterNSW have had a legal obligation to construct a fishway at Gin Gin since 2011. The design has been done. WaterNSW should just install a fishway and reinforce the current Gin Gin weir instead of constructing a very large expensive new dam.
• There is no sound socio economic case provided for this project.

c) The environmental and socio-economic impact:

• A registered aboriginal heritage site will be destroyed.
• The socio-economic impact of reduced flows downstream of Marebone weir will not be considered. Grazing, unregulated irrigation and tourism opportunities will be significantly negatively impacted by the project.
• Towns like Warren and Carinda will be at an increased risk of the river running dry again.
• Gin Gin is a very popular recreational site.

   Water

• Unregulated, natural flows including flows entering the river from the Bell, Little and Talbragar Rivers are critically important for aquatic native animals and fish to breed, feed and migrate.
• Natural flows carry nutrients, occur when the atmospheric conditions are just right, and are the correct temperature.
• There will be drier conditions downstream, including the Macquarie Marshes. This will mean it will be a lot harder for the Macquarie River to connect to the Barwon-Darling Rivers.
• The 30km weir pool will mean reduced water quality and increase erosion.

Marshes and migratory birds

• The internationally significant Ramsar listed Macquarie Marshes are one of the most important waterbird breeding sites in Australia. Australia has a legal obligation to protect Ramsar wetlands.
• A notice of “change of ecological character” was issued in 2010 because the condition of the Macquarie Marshes had deteriorated so much. The main reason for the notice was a change in flow regimes.
• This project can only exacerbate the ongoing decline in the health of the Macquarie Marshes and therefore the habitat for 14 species of migratory birds, 10 colonial-nesting species, and a total of 233 native species of birds including 77 species of waterbird, some of which are listed as critically endangered.
• The Marshes also provide habitat for 60 native reptile species, 11 species of native fish, 29 native mammals, 15 native frogs and 324 native plant species.
• More details Professor Richard Kingsford submission to the EPBC referral here

   Native fish and the riparian zone

• The habitat of native fish listed as endangered and critically endangered under the NSW Fisheries Management Act and the Federal EPBC Act will be significantly impacted.
• One of the last remaining significant Murray Cod breeding sites on the Macquarie is immediately downstream of the proposed dam.
• The 30km weir pool would mean a loss of riffle zones, snag habitat, the inundation of spawning and recruitment sites. Details in the EPBC referral.
• A 30km long weir pool of still water will cause Murray Cod eggs to sink and die.
• The vegetation along the river, including centuries old River Red Gums, will likely drown due to extended periods of inundation.
• The frequent fluctuations in water level will not provide vegetation or biofilm a suitable hold. Over time, this will mean the weir pool will not support a food web for native fish, reptiles, waterbirds or any other aquatic animals. Dr Martin Mallen-Cooper’s comments.
• Transforming a moving part of the river to a still pool will suit carp and mosquito fish.
• Fish passage at Gin Gin is very important and overdue. The compulsory fishway component of the re-regulating structure will not ameliorate the significant impacts the project would have on the habitat of threatened and endangered native fish and other aquatic animals.
• Native Fish in the Macquarie River are already listed as an Endangered Ecological Community.

f) Other matters:

• The project will likely have significant impacts on matters of national significance, and should not be assessed by the NSW Government who are the proponents of the structure, this is a clear conflict of interest.

The official document produced by the NSW Government that will inform the environmental impact statement for the Macquarie River re-regulating dam details the expected significant impacts on the habitat of threatened and endangered native species.

WaterNSW suggested in this document that the impact the project would have on the Ramsar listed Macquarie Marshes and on migratory birds would not be significant, however the Commonwealth Government disagreed, and found the expected impact will indeed by significant.

Here is a summary of the expected significant impacts taken directly from the document:

• Change of flowing river habitats to pool habitat.

• Loss of freshwater habitat types such as riffle zones due to inundation, and changes to flow regimes and water quality.

• Impacts to aquatic habitats and riparian vegetation from the regular variability of water levels within the storage and the associated effects on river bank stability.

• Loss or decrease of available recruitment areas, due to changes in available habitat.

• Likely impacts to the structural elements that make up established habitat of vulnerable Murray Cod in the existing Gin Gin Weir pool, including potential spawning sites.

• The new operational regimes may impact larval recruitment and the movement of fish in the locality.

• Greater variability in the pool levels and altered fish passage opportunities at the location.

• The alterations to important fish habitat in this locality and the potential operation effects on habitat and spawning for Trout Cod and Murray Cod may give rise to potentially significant impacts to these species.

• Potential impacts to the aquatic environment are likely to be more marked with a more extensive pool created behind the reregulating structure than the existing weir, greater variability in the pool levels and altered fish passage opportunities at the location.

• Potential direct impacts on threatened ecological communities within the project area may include inundation of vegetation as a result of impoundment.

Potential impacts to listed migratory species include:

            • Loss or changes to habitat, including changing flowing river habitats to pool habitat

            • Temporary displacement during construction activities

            • Alterations to hydrological regimes

            • Impacts to groundwater dependent ecosystems

            • Impacts to aquatic habitats and riparian vegetation from the regular variability of water levels within the storage.

Read the full document here:

The Murray Lower Darling Rivers Indigenous Nations (MLDRIN) is a confederation of Sovereign First Nations from the Southern part of the Murray Darling Basin (MDB). The group currently includes Delegates from 24 Nations across Victoria, NSW, the ACT and South Australia.

MLDRIN understands that the construction and operation of the proposed Macquarie re-regulating structure will have significant detrimental impact on matters of national environmental significance, including a Ramsar wetland and Federally listed threatened species. The proposal will also have detrimental impact on places and species of profound cultural significance to Traditional Owners of the Wiradjuri and Wailwan Nations. We also wish to highlight that engagement and consultation with relevant First Nations has been grossly inadequate…..

… We wish to stress that the waterways and landscapes likely to be impacted by the Re-regulator project are of profound cultural significance to multiple First Nations groups. The referral documents indicate that consultation with these Nations has grossly inadequate and that erroneous understandings of First Nations people have underpinned engagement and project design.

MLDRIN is a peak representative body, advising the MDBA, as well as NSW agencies (including sections of the Department of Primary Industries and Environment) regarding appropriate consultation with First Nations on waterway management issues. MLDRIN has a formal statutory role under he Basin Plan to assess water resource plans prepared by State Governments. MLDRIN has received no formal notification or been engaged by the proponent on this project.

MLDRIN’s Wiradjuri Nation delegates have identified the Macquarie Marshes and Murray Cod as critical cultural assets. Existing issues with poor water quality, water extraction, regulation and pollution have already degraded these sacred values. The re-regulator project is likely to greatly exacerbate these impacts…..

…. MLDRN is also deeply concerned by statements indicating the likelihood of inundation of cultural heritage features around the Rocky Point area. The referral also indicates that ‘The nature of the recorded sites suggests that similar sites are likely to exist at other locations along the river and across the landscape.’ It is grossly inadequate to suggest that cultural heritage sites subject to induction and destruction can be substituted for other sites along the waterway. All cultural sites bear a unique testimony to cultural traditions and occupation of country and cannot be substituted.

MLDRIN is also deeply concerned that the 30km weir pool that would result from construction of the re-regulating structure will lead to inundation and drowning of ancient River Red Gums and other physical and biotic features of cultural significance In summary, MLDRIN is deeply concerned that this project will pose significant, new threats to a river system and associated features of National Environmental significance that are already critically stressed. The related cultural values are also likely to be significantly impacted, with poor First Nations consultation evident in the project design.

Download MLDRIN’s full submission here:

Bill Johnson, 1^st May 2020

Introduction; water for irrigation, utilities and stock and domestic use

In the Macquarie Valley, tributary flows downstream of Burrendong Dam are considered part of the regulated supply for the purpose of meeting water orders or other commitments. If the tributaries are flowing their water is used, where possible, to meet demands that would otherwise be met from the regulated supply in Burrendong Dam.

A former water department regional manager in Dubbo once explained that it helped to think of a ‘notional dam near Narromine.’ From the position of maximising regulation and extractive use this makes sense. But it is a legacy of a time when other values of water were not considered.

Role of the re-regulating storage

The Macquarie River Re-regulating Storage (MRRS) Scoping Report[1] states that;

The new re-regulating storage will improve water security, reliability and delivery efficiency in the Macquarie River valley. The re-regulating storage will be located downstream of Burrendong Dam, between the townships of Narromine and Warren (p 6).

WaterNSW and the consultants have said that the new storage will not regulate tributary flows.

The MRRS Scoping Report says otherwise. Section 2.1.1 points out that, under the current plan, some tributary flows will be regulated (my highlighting).

The proposed re-regulating storage would function as a storage that is capable of capturing surplus flow events and regulating them, as required, to reduce operational losses. The intent of the storage is to capture operational releases from Burrendong Dam that are surplus to operational need and to store them temporarily until required to supply subsequent water orders. Releases identified as surplus within approximately 6 days’ travel time from Burrendong Dam may potentially be captured.

The source of operational surplus flows released from Burrendong Dam can include the following:

• Customer orders that are subsequently cancelled due to, for example, rainfall events occurring which negate the need for irrigation
• Orders subsequently met by useful tributary contributory inflows
• Releases in excess of those required to cover delivery losses (p 16).

This section cannot be interpreted in any way other than that tributary flows will be regulated by the new storage.

My summary of the Report is;

The purpose and operation of the storage will be to capture operational releases from Burrendong Dam and store them to meet orders. These releases include tributary flows downstream of the dam.

Statements that downstream tributary flows will not be regulated by the new storage are only true because they are considered by WaterNSW to be releases from Burrendong Dam.

A reasonable person would not call tributary flows into the Macquarie, downstream of Burrendong Dam, releases from Burrendong Dam. Flows from the Talbragar, Bell and Little Rivers, Coolbaggie Creek, and other smaller streams that join the Macquarie downstream of the dam do not come from the dam.

A reasonable person would be astonished by this notion. That the notion exists, and is the published position of the NSW Government, would be met with disbelief.

Operation of the weir

The term useful tributary flows, meaning those that can be used to meet orders, demonstrates the NSW Government’s priorities. There is no stated limit to the amount of water to be regulated from the tributaries. Flows will be regarded as useful, and will be regulated, if they can be used to meet orders.

The capacity to hold these flows in the new storage means that more flows will fit the category of useful, and more water will be regulated and extracted. It allows a blank cheque for regulation and extraction of tributary flows.

It is naïve to think that WaterNSW will not use the storage to regulate as much of the tributary flows as possible. It will be managed to maximise the amount of water extracted. The more water it can control the better the narrow financial argument for it will be.

It is likely that tributary flows will be deemed useful, and available for regulation by the storage, if they can be used to;

• meet irrigation orders rather than using releases from Burrendong Dam,
• restore flows to regulated sections of the river and creeks downstream of the weir,
• provide regulated stock and domestic supplies,
• provide stock and domestic supplies from unregulated flows.

Conclusion

In 1987 the NSW Government published a Regional Environmental Plan for the Macquarie Marshes that said;

The Audit found the WRC [Water Resources Commission] was ineffective in management of the State’s water resources, having difficulty in moving beyond its former role of rural supply authority. Broad water needs of the whole community, including the needs of the natural environment, were residual considerations to irrigation development and operations…The new Department of Water will be required to address cultural, scientific and aesthetic values as legitimate community needs in terms of water management.[2]

Water is mentioned in terms of losses and surplus more than 60 times in the MRSS Scoping Report. The proposal by WaterNSW to build a new storage on the Macquarie River, and the language it uses, show that the perspectives and objectives of the NSW water agencies have not changed since the 1980s.

Government failure to address the broad water needs of the whole community has long been a serious problem. Community dissatisfaction with water management in NSW was a major factor in the National Party’s loss of the seat of Barwon to the Shooters, Fishers and Farmers Party. It is a lesson that hasn’t been learnt.

[1] Water NSW. 2020. Macquarie Re-regulating Storage; Scoping Report. NSW Government, Sydney.

[2] Department of Environment and Planning. 1987. Regional Environmental Plan for the Macquarie Marshes, Department’s Minute: 17 November 1987. NSW Government, Sydney.

9/6/2020

The building of a re-regulating storage on the Macquarie River, as a proposed action has been referred to the Australian Government Department of Agriculture, Water and the Environment for assessment against Matters of National Environmental Significance (MNES) (EPBC Act referral 2020/8652).

Matters of National Environmental Significance (MNES)

• First, the referral acknowledges that the proposed action is likely to have a direct or indirect impact on the ecological character of the Ramsar listed Macquarie Marshes, but concludes that this impact is not significant. This is clearly wrong and contradicts the overwhelming scientific evidence for the management of the health of the Macquarie Marshes and scientific understanding of river flow and inundation regimes, the listed advice on the management of the ecological character of the Marshes as a Ramsar site, as well as the evidence presented in this submission.
• Second, the referral acknowledges that the proposed action is likely to have a direct or indirect impact on nationally listed threatened species or their habitats or any threatened ecological community, concluding that this impact is significant. This submission supports this conclusion, based on the scientific evidence but points out the inadequacy of the proponent’s preliminary assessment in relation to the level of impact.
• Third, the referral acknowledges that the proposed action is likely to have a direct or indirect impact on listed migratory species or their habitats but then concludes that this impact is unlikely to be significant. This is clearly wrong and contradicts the overwhelming scientific evidence for the management of the health of the Macquarie Marshes and scientific understanding of river flow and inundation regimes, the listed advice on the management of the ecological character of the Marshes as a Ramsar site, as well as the evidence presented in this submission.

See the full submission below in PDF form.

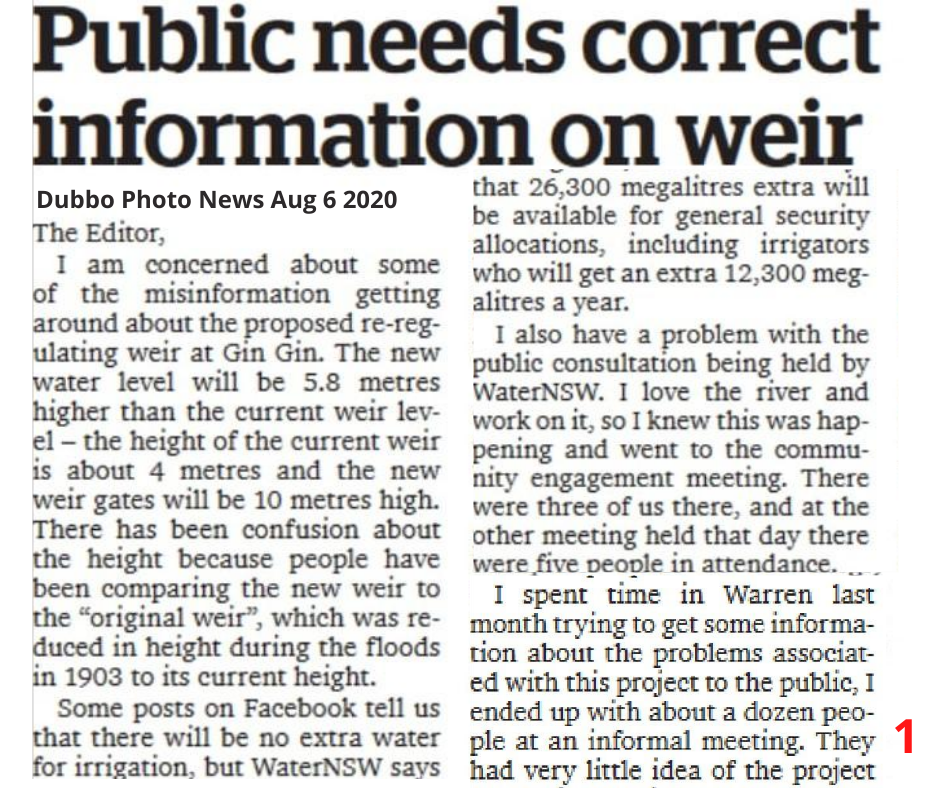

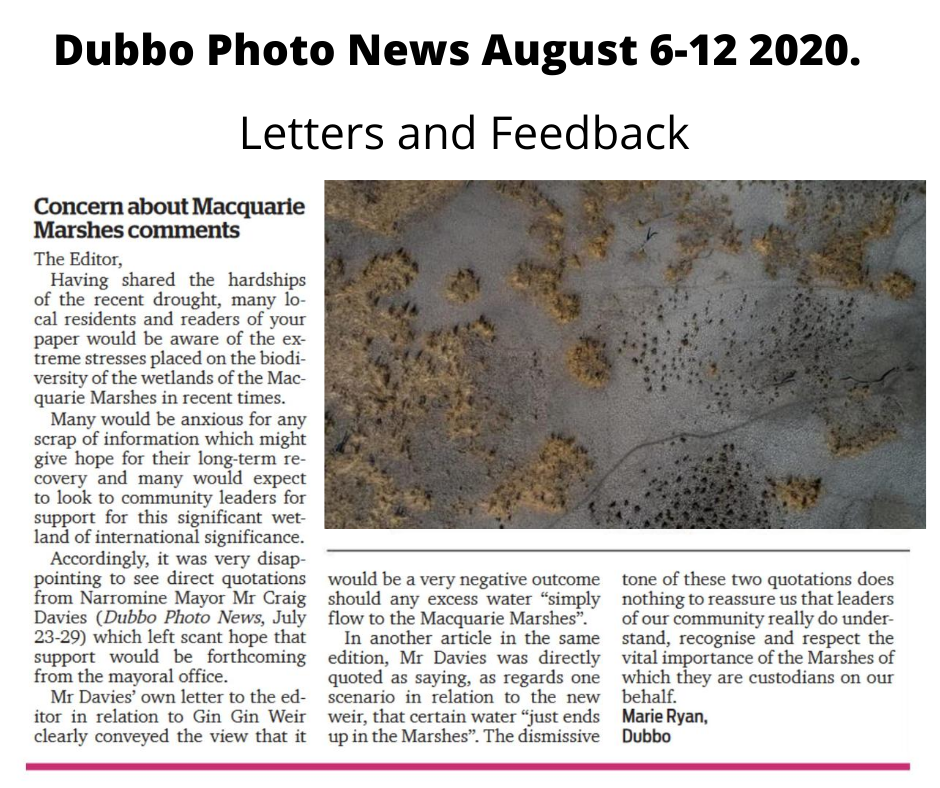

Dubbo’s Marie Ryan takes issue with suggestions by Narromine Mayor Craig Davies that the Macquarie Marshes could be receiving water that in his opinion, they aren’t ‘entitled’ to.

---

Healthy Rivers Dubbo convenor Mel Gray speaks to Rod Corfe on Bourke’s 2WEB Outback Radio

---

Dubbo Day Award recipient David ‘Harro’ Harris is amazed at how few people know about the proposal to dam the Macquaire, and how much misinformation is getting around about the height of the structure.

---

Western Paddlers NSW are concerned about the loss of natural flows in the Wambuul Macquarie and the internationally recognised Ramsar listed Macquarie Marshes.

A new dam is being planned on the Wambuul Macquarie River, 200 metres downstream of the current weir at Gin Gin, between Narromine and Warren.

John Laws became interested in the project after Mel from Healthy Rivers Dubbo called him on Monday 20/7/20 to have a chat about it.

Dugald Saunders, member for Dubbo got on the next day and announced that the new dam would only be 1 metre higher than the the current weir at Gin Gin.

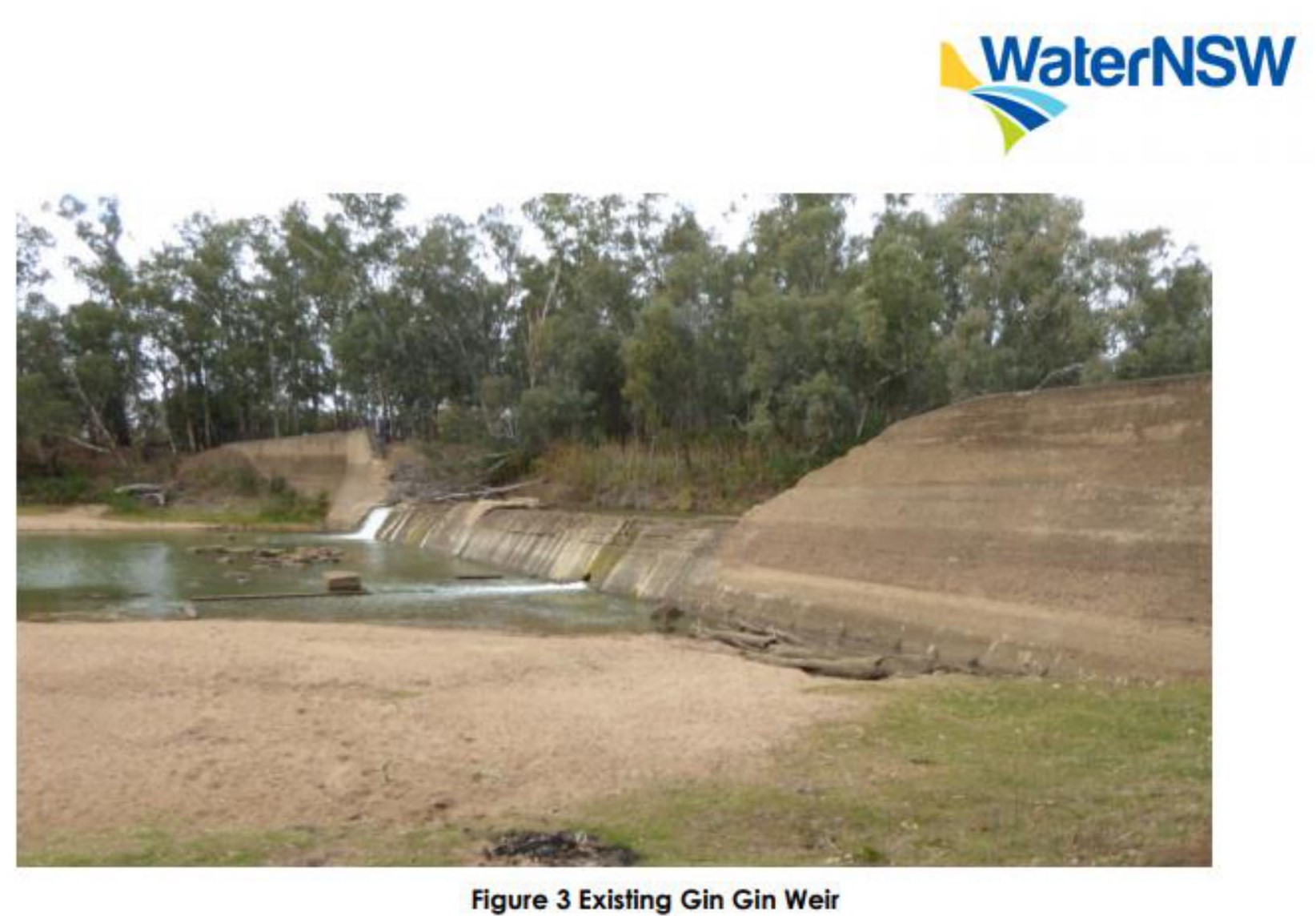

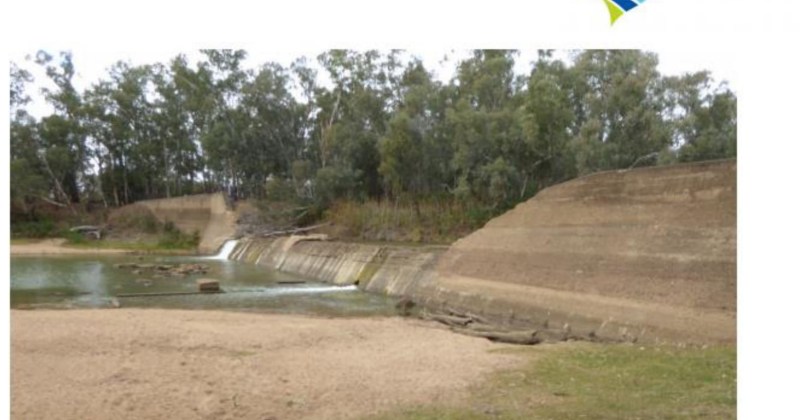

The current weir at Gin Gin is now about 4 to 5 metres high. It was a lot higher once, about 10 metres or so, before floodwaters had their way and trimmed it down.

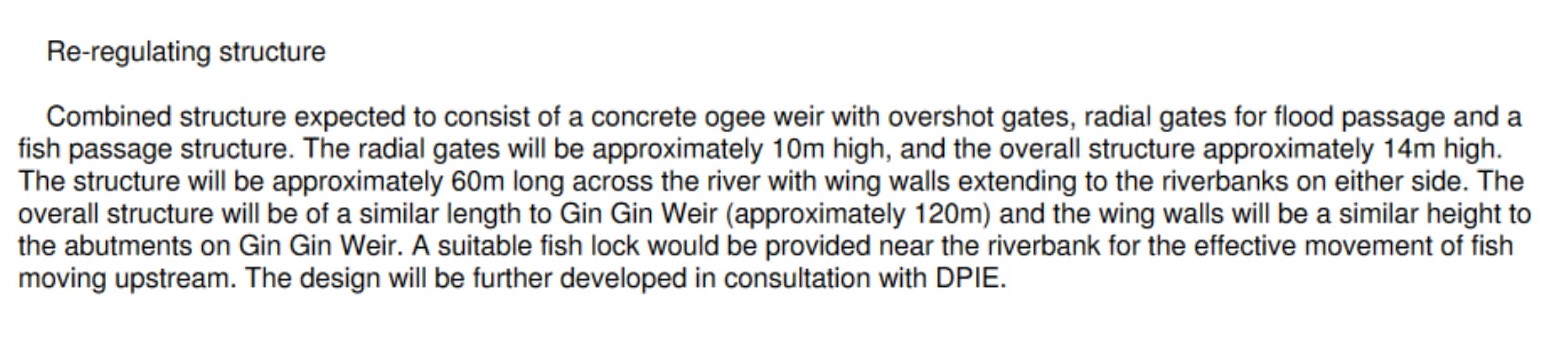

From the start, plans for the new dam are for a 14 metre high structure, with 10 metre high gates, capable of holding back 9,000 Megalitres of water.

WaterNSW have been saying that they will reduce the size of the structure following concerns raised by stakeholders about the significant impact the project would have on Native Fish and the Ramsar listed Macquarie Marshes downstream. They have talked about a structure with 3 stages of 5 metre high gates, capable of holding back 6,000 Megalitres.

However, in the official document (bottom of the first page) signed by WaterNSW on the 28th May 2020 that will inform the environmental impact statement, the project is described such:

Mel understood that while WaterNSW were saying they would reduce the height of the gates, the official documentation had not changed, so called John Laws back with serious concerns that the Member for Dubbo didn’t understand the scale of the project.

To finalise the question about the height of the new dam, Dugald wrote to John Laws and on Thursday 23/7 the following was read out on air..

The key sentence is “the full supply level of the new structure will be approximately one metre higher than the storage at Gin Gin weir prior to it’s failure.”

Prior to it’s failure the weir was about 10 metres high or so.

In a round about political-speak way, Dugald Saunders has confirmed that as Mel and the official documents referenced above said, the new dam will have gates 10 metres high (while at the same time he appears to win the debate like any good politician would).

WaterNSW cannot be trusted.

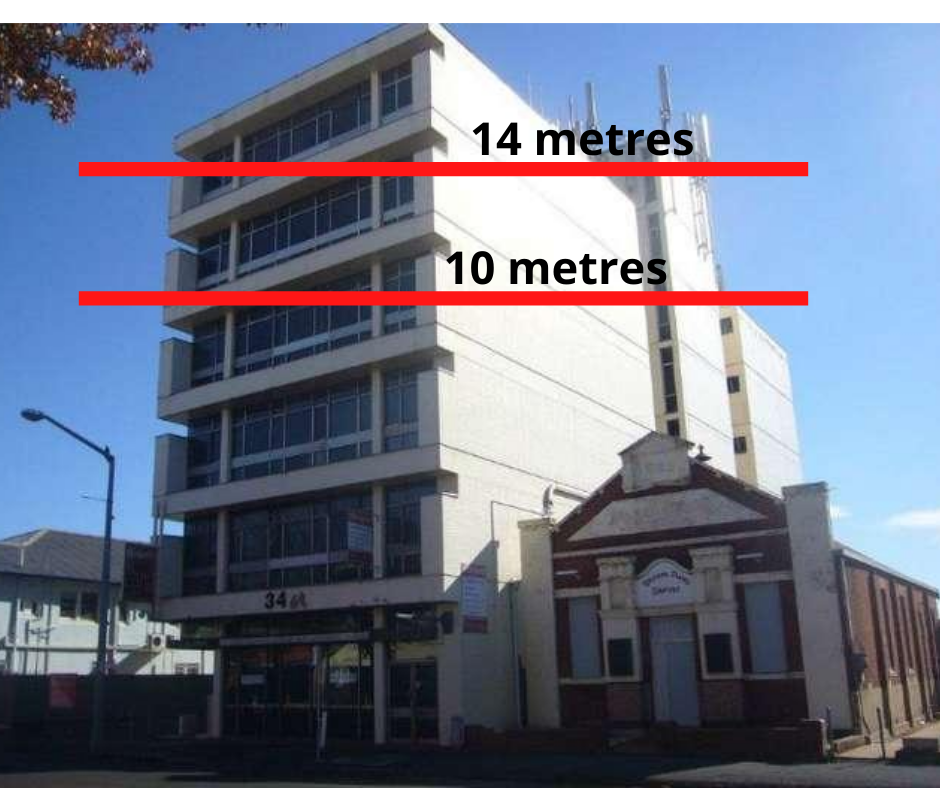

For reference, 14 metres is almost as high as a 5 story building.



Since 2014, WaterNSW have had a protocol in the Macquarie-Cudgegong Valley where if a water ordering customer has a history of cancelling water orders after they’ve been released from the dam, their water account can be debited by the volume of water they order, not the volume they pump.

To date, this protocol hasn’t been applied, rather water customers who habitually order more water than they need are only debited the volume of water they pump.

The capture of rainfall rejection orders is the main reason being put forward for the construction of the enormous in channel dam at Gin Gin.

Why should the public be asked to foot the large bill of over $30 million for a massive gated structure that will dam the river for 30 km, destroying Red Gums and making the river uninhabitable for native fish?

This dam would withhold water from the internationally recognised Ramsar listed Macquarie Marshes, put the town of Warren at higher risk of running out of water, deny natural tributary inflows to the creeks and the Lower Macquarie and make connection between the Macquarie and Barwon Rivers even harder to achieve.

If water customers have a habit of ordering more water than they extract, then why doesn’t WaterNSW use the protocol and debit their accounts?

Water Order Debiting Macquarie Cudgegong

** Impacts to the Ramsar listed Macquarie Marshes and migratory birds to be recognised as significant in Environmental Impact Statement! **

Public comment was recently invited on the EPBC Act referral for the Macquarie River re-regulating weir – which is a proposal to build another dam on the Macquarie River upstream from the Ramsar listed Macquarie Marshes.

This document will inform the Environmental Impact Statement for the project. WaterNSW prepared the referral, for the consideration of the federal environment department. In their proposal, WaterNSW considered that the impact of the new dam on the Macquarie Marshes and on migratory birds would not be significant.

Many of you prepared submissions, and disagreed with WaterNSW, instead identifying many ways that the dam would in fact have very significant impacts on the wetlands and the migratory birds that rely on them.

** YOU WERE HEARD! **

The environmental impact statement will now look closely at the significant impact the dam would have on the Macquarie Marshes and migratory birds.

Approved Referral

An alternative to the dam proposal was presented in the referral, that the current Gin Gin weir be replaced where it is – without the capability of creating a new dam. Any new structure would also have to incorporate a fishway. This would be a great outcome for the Wambuul Macquarie River!



The referral 2020-8652 – referral_Final produced by WaterNSW identified a lot of significant impacts that the dam is expected to have. Here’s a quick summary:

• Reduced inflows into the Macquarie Marshes – small flows in dry years are critical to the Marshes.
• 30km of river banks vegetation would be drowned.
• Loss of habitat types such as riffle zones due to flooding and decreased water quality.
• Loss of aquatic and river bank habitat for 30km.
• Loss of snag habitat and spawning sites for vulnerable Murray Cod.
• Native fish eggs would sink in the still water and die on the bottom of the river.
• Fish in the area would have limited movement, even with the fishway, which is not enough to counteract the loss of habitat.
• Loss of flowing river habitat.
• The river banks will degrade and erode, land most likely will have to be lined with rocks for 30km – creating a sterile lifeless in channel dam.
• Impacts to the groundwater recharge and groundwater dependent ecosystems.
• Threats to native fish listed under the Fisheries Management Act – Eel-tailed catfish, Olive Perchlet Southern Spotted Purple Gudgeon, Silver Perch, Trout Cod as well as Murray Cod.
• A registered Aboriginal heritage site will be inundated by the resulting weir pool.
